How to Repair, Improve and Modify the Steering on a Cub Cadet and Other Makes and Models of Garden Tractors

Serving the Small Engine, Lawn & Garden, and Garden Tractor Pulling Community Since 1996. Where Science and Common Sense Come Together for Safety and Improved Engine/Tractor Performance
A-1 Miller's Performance Enterprises - Parts & Services Online Catalog

Last update: 10/29/18 (Click Refresh to see changes or updates.) Optimized for 1024 x 768 screen resolution. To search for a word or phrase in any of my web sites, press CTRL and F to open the Find dialog box in your web browser.

When building a garden tractor for pulling, it's best to remove and disassemble everything. (This is much easier to do on a platform work table.) Clean and inspect all the parts for wear, especially the steering parts. This is one area a lot of people overlook. Steering is very important, especially in pulling, and should never be overlooked or neglected. Loose or worn steering parts can be dangerous. A puller may just tighten the steering box adjustments, inspect the tie rod ends and that's it. But there's more to it than just making proper adjustments...

How to Remove the Steering Wheel from a Cub Cadet or Virtually Any Garden Tractor with a ROSS Steering Assembly - There are several ways to remove the steering wheel from a Cub Cadet or virtually any garden tractor with the ROSS steering assembly.

DO NOT STRIKE THE SPLINED END OF THE STEERING SHAFT WITH A BIG HAMMER IN AN ATTEMPT TO REMOVE THE STEERING WHEEL! Doing this could cause the internal threads in the lower part of the cast aluminum steering box housing to split and crack the case or break off entirely. Or if the housing is cracked, the bottom of the steering box could break off entirely later, which would be dangerous because the tractor could go out of control, especially when pulling on the track.

To prevent damage to the threads on the steering shaft, install an ordinary length 5/8-18 UNF nut on the shaft threaded down until flush with the end of the threads, and while pulling upward on the steering wheel with your hands (assistance/help may be needed), give the nut a short blast with an air chisel. Do not use the short OEM steering wheel retaining jam nut because threads on the shaft may become damaged . AND DO NOT USE A BIG HAMMER! If the end of the steering shaft was hammered on without the nut installed in an effort to remove the steering wheel, which caused the threads to become flared-out or "mushroomed", well, there two ways to fix this... (A-1 Miller's provides this repair service, too.)

The easy way to fix this is...

Use a hacksaw or reciprocating saw (also known as a saw-saw) to cut the damaged threads off the steering shaft next to the splines.
Use a 1/2-20 UNF (plug) hand tap to cut new threads in the [hollow] shaft.
Install a 1/2-20 UNF x 1-1/2" length bolt with a flat washer and lock washer to secure the steering wheel to the shaft.

The more complicated way to fix this and retain the OEM look of the stud with the retaining nut is...

Remove the steering shaft from the steering box assembly.
Cut the damaged threads off the shaft next to the splines.
Cut the head off of a 5/8-18 UNF fine thread x 1-1/2" long grade 5 bolt.
With the original threaded end of the bolt firmly chucked in a metal lathe 1/2", machine down 1" length of the threads until the newly created shank is .003" larger in diameter than the hole in the steering shaft. This will make for a press-fit. Bevel or chamfer the end of the shank for easier insertion in the steering shaft.
Use a hydraulic press to install the shank into the shaft until the threads of the bolt bottoms out with the splines. DO NOT USE A BIG HAMMER TO INSTALL THE BOLT IN THE SHAFT!
Use a drill press or milling machine to drill a 3/16" hole through the shaft and shank below or past the splines and install a 3/16" x 3/4" spiral pin to permanently secure the machined bolt to the steering shaft.
If necessary, grind the end(s) of the spiral pin flush with the shaft so it will not interfere with the upper bearing.

Use either a steering wheel puller (with bolts) or an automotive harmonic balancer/vibration damper puller (with bolts) and a bearing separator, or use only a 3-jaw gear puller to "pull" the steering wheel off the shaft. To prevent damage to the steering wheel, make sure the jaws of a gear puller won't break or crack the plastic around the hub.

If doing the above didn't work, the splined hub in the steering wheel will need to be heated, or if necessary, the hub will need to be cut in two with an oxy-acetylene torch to remove it from the splined shaft. Be careful not to damage (melt) the splined shaft!

As the last resort, if the steering shaft itself must be literary cut-off with a hacksaw or reciprocating saw (also known as a saw-saw), just under the steering wheel, the splined part of the shaft can be replaced with the steering shaft (that's in good condition) out of a 1949 to 1994 GM car or truck. Only a short section of the splined end of the shaft will need to be used. The GM shaft next to the splines will need to be machined down fit inside the Cub Cadet [hollow] steering shaft, then the GM shaft can be pressed inside the ROSS shaft with an 1/8" gap. Fill in the gap with welding around where the two shafts meet. The lump of weld will need to be either machined down (in a metal lathe; for use of a solid metal bushing) or ground down (with a hand grinder for use of a ball bearing) so the upper bushing or bearing will slide on the shaft. Installation of the steering wheel and hub adapter are explained below Ê.

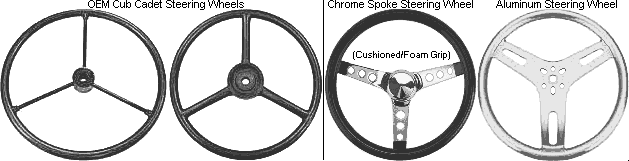

Custom Steering Wheels Replace that worn, cracked (and not to mention unsightly and boring/plain looking) OEM (Original Equipment Manufacturer) steering wheel with an attractive, small diameter (10" or 12") automotive-style/hot rod custom steering wheel or a chrome spoke steering wheel! A custom or chrome spoke steering wheel will, without a doubt, improve the overall appearance of the entire tractor.

To adapt a custom steering wheel to the steering shaft, and if the splines and threads on the steering shaft are in good condition, the only automotive custom steering wheel installation adapter kit I found that fits close on a Cub Cadet splined steering shaft is an aftermarket early GM steering wheel hub adapter kit (Grant part # 3196) made for most General Motors cars and trucks from 1949 to 1994 without telescopic steering. Leave out the horn switch plate and install multiple flat washers on the supplied steering wheel mounting bolts so the steering wheel will be tight against the hub. Use the OEM Cub Cadet steering wheel retaining nut or a 5/8-18 UNF nut with a flat washer to secure the steering wheel and hub to the steering shaft. The GM adapter center spline has the correct diameter, but the number of splines are not a perfect fit, so it will need to be gently tapped onto the Cub Cadet steering shaft. Or the center splined hub from a 1949 to 1994 OEM GM steering wheel can be used instead. But the three small holes in the hub will need to be enlarged and tapped for three 1/4" bolts for installation of the custom steering wheel. Or if you don't want to use the GM adapter, the splined hub from an old Cub Cadet steering wheel with the spokes cut off, and a large flat washer (with three tapped 1/4" bolt holes for installation of the custom steering wheel) welded to the adapter can be used. Once the steering wheel is removed, position the front tires forward, fasten the splined adapter on the steering shaft (with the choice of hardware listed below Ê), then fasten the steering wheel with the adapter facing in the straight ahead position. For easier installation of nut (and easier removal of steering wheel), use a 5/8-18 UNF threading die (and handle/wrench) to clean/straighten damaged threads on shaft, apply anti-seize compound/lubricant on threads (including splines inside steering wheel and on shaft), then torque nut to 65 ft. lb.

Install the three 1/4" bolts from the bottom up, install the steering wheel, then install stainless steel acorn nuts with a split lock washer to the bolts (studs) to fasten the steering wheel for a nice looking and (rust-proof) professional look. Then to hide the (unsightly) large center retaining nut, install a 15/16" stainless steel lug nut cover. These are made for semi tractor-trailers, which are available at most truck stops and on eBay. Or, to hide the three bolts and retaining nut, install a chrome-plated universal custom automotive horn button (center cap). To do this, machine a large flat washer in a metal lathe so the washer will be slightly larger than the inside diameter of the horn button. Fasten the washer in the steering wheel to the three 1/4" bolts with a couple of stacked smaller flat washers under the large washer. Snap the horn button onto the washer and that's it! Snap the horn button onto the washer and that's it!

The steering Box Assembly for the Cub Cadet "Original" is part # IH-400904-R91. (The MTD Ranch King and Wheel Horse steering Box Assemblies are very similar.) The steering Box Assembly for Cub Cadet models 70, 72, 73, 86, 100, 102, 104, 105, 106, 107, 109, 122, 123, 125, 126, 127, 128, 129, 149, 169, 482, 580, 582, 680, 682, 782, 784, 800, 882, 1000, 1050, 1100, 1200, 1210, 1211, 1250, 1282, 1450, 1482, 1512, 1604, 1606, 1650, 1710, 1711 and 1712 is part # 703-1085. The steering Box Assembly for Cub Cadet models 982, 984, 986, 1912 and 1914 is part # 703-0230. The lower steering Box Assembly for Cub Cadet models 1340, 1535 and 1541 is part # 703-1794. (Similar to 618-3050.) The steering assembly for Cub Cadet models 1810 and 1811 (S/N 756,300 - 799,999) is part # 731-3001. The lower steering Box Assembly for Cub Cadet models 1440, 1861 and 1863 is part # 618-3050. (Similar to 703-1794.) All other Cub Cadet garden tractors not listed here have hydraulic steering.

How To Fix Loose or "Sloppy" Steering Parts -

To improve the steering on an IH Cub Cadet, is to remove, disassemble, clean, inspect, repair as necessary, reassemble, adjust, then lubricate the steering box unit with automotive grease through the Zerk grease fitting. By the way - adjustments are made much easier with the steering Box Assembly out of the tractor.

Don't Be A Slob When Rebuilding A Steering Unit!

Always be professional whenever building or rebuilding anything! Before reassembling a steering unit, always take the time to provide a neat and absolutely clean work environment. Make sure that your tools, shop/business towels, steering parts and hands are clean, too. Don't allow any dust or dirt to enter the work bench or table, including the steering box and it's parts. If necessary, place the parts on a large, clean cloth or cardboard to keep them clean and organized until they're ready to be installed. The reason everything should be kept as clean as possible is because even the smallest bit of dirt inside a steering box will "grind away" at the internal parts, causing unnecessary wear.

How to remove the steering box/column unit from the tractor - (This is much easier to do on a platform work table.)

Disconnect the battery.
Remove the steering wheel. Despite how rusted-on or stuck-in-place it may be, the OEM (Original Equipment Manufacturer) steering wheel MUST come off before the steering box can be removed from the tractor.
Remove the mower deck (if equipped).
Remove the tie-rod end that's connected to the pitman arm plate (steering lever).
Remove the two 9/16" bolts that fastens the steering box to the cross-member of the frame.
The steering unit then slides out from under the tractor.

How to disassemble the steering unit -

Remove the pitman arm plate and shaft.
Remove the cotter pin from the end cap.
Remove the end cap with a large flat screwdriver or flat ratchet tool by turning it counterclockwise.
Pull or slide the shaft out of the steering box. Use caution not to lose any of the ball bearings!
Clean and inspect everything. Observe the metal bearing retainers for cracks or breakage. Replace if necessary.

How to reassemble the steering unit -

Install the ball bearings in the nylon retainers. Apply lubricating grease on the balls to hold them in the nylon retainers so they won't fall out upon installation on the steering shaft.
Install the ball bearings on the steering shaft with the metal retainers to hold them in place.
Carefully slide the shaft through the steering box and column until it's bottomed out. Make sure no balls have fallen out of their retainers.
Install the adjustment plug, and tighten it until it's bottomed out. With Vise-Grips on the splined end of the steering shaft, rotate the shaft in full rotation to assure smoothness with no looseness or binding.
If the shaft feels like it's somewhat difficult to rotate in either direction, back the adjustment plug off until one of the notches match the hole for the cotter pin, and rotate the shaft in full rotation again. If it rotates smoothly with no looseness or binding, install the cotter pin. Back off the adjustment plug until the notch is against the cotter pin.
Pump fresh lubricating grease in the steering box and on/around the steering worm gear. Fill it up with grease.
If it isn't already installed, install the steering cam follower (steering pin) and locknut in the pitman arm plate.
Install the pitman arm plate and shaft, flat thrust washer and one adjustment nut.
Tighten down the adjustment nut until it's bottomed out and back it off an 1/8 of a turn. Install the other jam/lock nut and tighten it against the adjustment nut, making sure the adjustment nut doesn't turn.
Tighten down the steering cam follower until it's bottomed out in the steering worm gear groove and back it off about an 1/8 of a turn.
With Vise-Grips on the splined end of the steering shaft, rotate the shaft in full rotation. If binding occurs or if it feels a little too loose, adjust the steering cam follower until it feels satisfactory. But make the adjustment so the steering is a little "stiff", but not too tight. Because somehow, if it's adjusted too tight, it will stay too tight, and if it's adjusted "loose", it will loosen up more overtime. There is no way to prevent this. If the shaft rotates smoothly with no looseness or binding, tighten the jam/lock nut, making sure the steering cam follower doesn't turn.
Pump a few ounces of fresh automotive chassis lube through the Zerk grease fitting to make sure the unit is full.
That's it! The steering unit is now assembled, lubricated and adjusted!

NOTE: If new internal steering box parts are needed in a rebuild, you can get them at virtually any Cub Cadet dealer. Most John Deere lawn & garden service centers and parts stores offers the same parts for the steering box in their models 110, 112, 120, 140, 200, 210, 212, 214, 216, 300, 312, 316 and 317. The steering box in these tractors, which is made by ROSS, are very similar to the ones used in the IH Cub Cadet, except for the mounting holes. The internal parts are basically the same, but new John Deere parts are more expensive than new Cub Cadet parts.

Ever had the steering column (long tube) get pulled out of the steering box on a Cub Cadet? Well, doing the below Ê will guarantee that it will never get pulled out again -

Remove the steering box/column assembly from the tractor.
Disassemble the entire steering box assembly.
If the tube fits somewhat loose in the steering box, it can be expanded with use of an automotive exhaust pipe expander/spreader tool. (Available at virtually any auto parts store and on eBay.)
Apply clear RTV silicone adhesive sealant on the tube to prevent water and dirt from entering the steering box, then install it in the box until it bottoms out.
Drill four 1/8" holes spaced 90° apart through the steering box and into the tube.
Install 1/8" diameter x 3/8" length pop-rivets to permanently secure the tube to the steering box.
If the upper part of the steering box is cracked where the tube goes into, install a 2" worm gear hose clamp, or better yet, use a 1-7/8" automotive exhaust pipe U-bolt clamp to close the crack up, and secure the tube to the box as described above È.
Clean the metal drilling from the steering box and tube, and reassemble the unit using lubricating grease and make the necessary adjustments.

NOTE: If the upper part of the steering tube becomes damaged from removing the steering wheel, it can be straightened back to its original shape with the automotive exhaust pipe expander/spreader tool and a 2-3 lb. hammer. The internal steering shaft must be removed, so the tool will work.

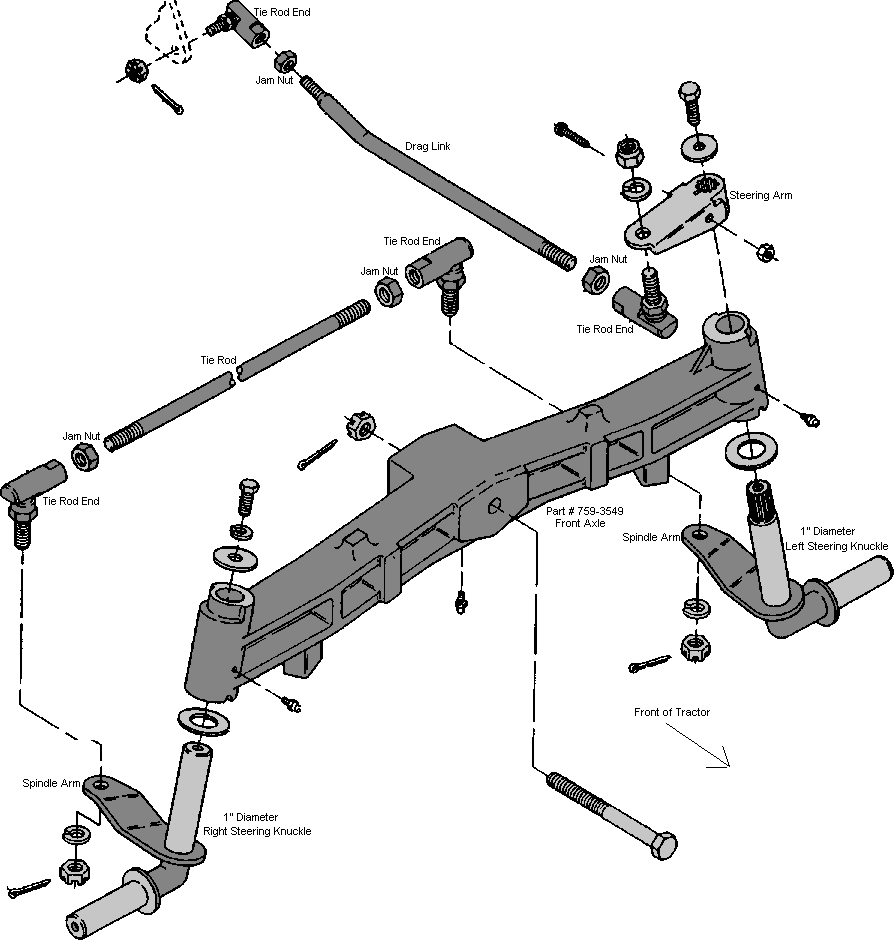

OEM-Quality Ball Joint & Aircraft-Quality Tie Rod Ends How to "Tighten" a Worn Tie Rod End -

Remove the tie rod end from the tractor.
Thread a grade 8, 3/8" fine thread bolt into the tie rod and securely clamp the bolt in a bench vise.
With the base of the tie rod resting on the jaws of the vise (to prevent bending the bolt), pound the end of the tie rod end with a medium size hammer until the ball is snug in the socket.
Lubricate the ball with clean motor oil.
Reinstall tie rod end on tractor, adjust toe-in.

If a tie rod end is badly worn and performing the above È doesn't "tighten" it, and you have doubts that it may fail in the future, then by all means, replace it with a known good used one or a new one. Actually, for heavy lawn and garden use or for a pulling tractor, it's best to use aircraft-quality ball-joint ends (Heim joints) with a flat washer and rubber dust/dirt shields installed.

Advertisement: (Prices are subject to change without notice.)

If you would like to purchase any of the parts or services listed in this website, please contact A-1 Miller's Performance Enterprises | 1501 W. Old Plank Rd. | Columbia, MO (Missouri) 65203-9136 USA | Phone: 1-573-256-0313 (shop) | 1-573-881-7229 (cell; text or when leaving a voice message, please speak slowly and clearly). Please call Monday-Friday, except holidays, 9am to 5pm, Central time zone. If no answer, please try again later. (When speaking with Brian, please be patient because I stutter.) E-mail: pullingtractor@aol.com. When you call, text, email or visit our shop, you will be dealing directly with the owner for the best customer service. A-1 Miller's shop is open to the public from 9am to 5pm, including weekends, except holidays. Please call before coming so I'll be here waiting for your arrival. Directions to our shop | 1501 West Old Plank Road, Columbia, MO - Google Maps or Map of 1501 West Old Plank Road, Columbia, MO by MapQuest. If you're the kind of person who don't trust delivery/shipping companies (mis)handling your high-dollar and fragile merchandise, you can make the long drive to A-1 Miller's shop to personally purchase parts, or drop off and/or pick up your carburetor, clutch assembly, engine parts, entire engine, transmission, transaxle, entire garden tractor, etc. for repairing and/or rebuilding. "The road to a friend's house (or shop) is never long." (We're planning to relocate our business to other property with a bigger and better shop so we can provide many more high quality parts and professional services.)

3/8" Diameter x 1-1/2" length Spiral Pins for OEM 3-pin clutch drive plate and [narrow frame Cub Cadet] drag link steering arm. Hardened carbon steel. Minimum Rockwell hardness is C42. NOTE: The holes in the drag link arm and spindle may need to be drilled exactly to 3/8" (.375") for this pin to fit. $3.00 each, plus shipping & handling.

A-1 Miller's Professional Repair Service - Professionally Weld Crack in ROSS (Cub Cadet, John Deere, etc.) Steering Box to Retain Original Strength and Integrity.

With steering box completely disassembled and all internal parts removed by customer. $35.00 labor and welding, plus return shipping & handling.
With fully assembled steering box. $55.00 labor and welding, plus return shipping & handling.

A-1 Miller's Professional Rebuild/Repair Service for ROSS Steering Box/Column Assemblies for IH Cub Cadet "Original", IH- and MTD-built Cub Cadet, Ford LGT, Jacobsen, John Deere, Massey Ferguson, MTD Farm King, Snapper, Wheel Horse and various other makes and models of garden tractors with the CCC or ROSS aluminum housing manual steering box. Services include: Completely disassemble steering box assembly, clean and inspect all parts for wear, repair or replace any part that's worn, reassemble, lubricate, then make necessary adjustments until steering works smoothly so it'll provide many more years of trouble-free service. $50.00± labor + extra charge for replacement parts, plus return shipping & handling.

Replace damaged OEM steering column with a new shiny and attractive heavy gauge galvanized steel tubing. Galvanized steel tubing looks nice, especially on an NQS Half Pint garden pulling tractor with an exposed steering column. $35.00 extra. An original and innovative concept by Brian Miller.
Purchase the heavy gauge galvanized steel tubing alone. Customer installs this part. When ordering, please indicate exact length of tubing measured from top of steering box to end of OEM steering column. To install, use a hydraulic press to install tubing into the steering box with the welded seam facing downward or out of sight (for appearance reasons), and secure it with (3) 1/8" x 1/2" length pop rivets spaced equally apart. $10.00 each, plus shipping & handling.

FOR SALE: Professionally Rebuilt IH Cub Cadet "Original" and Cub Lo-Boy ROSS Steering Box/Column Assembly.

$200.00 each with rebuildable core trade-in, FREE shipping & handling. (When available.)
$250.00 each outright, FREE shipping & handling. (When available.)

FOR SALE: Professionally Rebuilt IH Cub Cadet ROSS Steering Box/Column Assemblies.

Models with the flat steering wheel is 28"± overall length when measured from end of threads on steering shaft to bottom of steering box.
- $250.00 each with rebuildable core trade-in, FREE shipping & handling. (When available.)
- $300.00 each outright, FREE shipping & handling. (When available.)
Models with the dished steering wheel is 25"± overall length when measured from end of threads on steering shaft to bottom of steering box.
- $250.00 each with rebuildable core trade-in, FREE shipping & handling. (When available.)
- $300.00 each outright, FREE shipping & handling. (When available.)

"Easy Steer" Upgrade Kits. Provides easier steering with slightly less effort, especially with a front end loader bucket. Fits all IH- and certain MTD-built Cub Cadet, John Deere, Massey Ferguson, Ford LGT, Jacobsen, MTD Farm King, Wheel Horse and various other makes and models of garden tractors with the CCC or ROSS aluminum housing steering box, except Cub Lo-Boy. Each kit includes new high quality pre-lubricated sealed thrust ball bearing and nylon-insert lock nut. Replaces OEM double jam nuts and thrust washer on 5/8" or 3/4" diameter pitman arm stud. Install bearing with shielding (wording on bearing) against steering box, and tighten nut to remove looseness, then back off nut until pitman arm rotates freely without binding. Each kit listed below includes thrust bearing and nylon insert locknut. NOTE: The Easy Steer Upgrade Kit will NOT work on the steering box with the pivot shaft bolt NOT welded to the steering arm in MTD-built Cub Cadet models 782, 784, 786, 1340, 1440, 1535, 1541, 1810, 1811, 1861, 1863, 1912 and 1914 because the protruding threads are too short. [Top of Page]

For models with 5/8" diameter pitman arm stud. $12.00 per kit, plus shipping & handling.
For models with 3/4" diameter pitman arm stud. $27.00 per kit, plus shipping & handling.

Teflon Thrust Washers for Steering Knuckles and Front Axle. Provides easier steering with less effort, especially with a front end loader bucket. Fits Cub Cadet "Original" and Cub Cadet models 70, 71, 72, 73, 86, 100, 102, 104, 108, 109, 122, 123, 124, 125, 126, 127, 128, 129, 147, 149, 169, 482, 580, 582, 582 Special, 680, 682, 782, 800, 882, 982, 984, 986, 1000, 1050, 1202, 1204, 1210, 1250, 1450, 1650, 1282, 1340, 1440, 1450, 1512, 1535, 1541, 1572, 1604, 1606, 1641, 1650, 1710, 1711, 1712, 1772, 1782, 1806, 1810, 1811, 1812, 1860, 1861, 1862, 1863, 1864, 1872, 1882, 1912, 1914, 2072, 2082, 2086, 2165, 2182 and 2284, and various other makes and models of garden tractors with 3/4", 7/8" or 1" diameter front spindle shafts. These are not ordinary nylon or plastic washers. These are made of very tough, long wearing and slippery polytetrafluoroethylene (PTFE). Eliminates metal to metal friction, which can result in hard steering, reduces steering effort about 85% and prevents wear to axle and steering knuckles. Use automotive chassis lubricating grease when installing. Works great for general lawn and garden use, and/or tractors with a heavy snow plow and/or front loading bucket. Installs where steering knuckles makes contact with underneath of axle (load-bearing and friction area). Go here for more information: Polytetrafluoroethylene (PTFE): Complete Guide.

For Tractors with 3/4" Diameter Front Spindle Shafts or 3/4" O.D. Spindle Sleeves (with 1/2" bolts). Dimensions: 3/4" I.D. x 1-1/2" O.D. x 1/16"± thick. $12.00 for two washers, plus shipping & handling.
For Tractors with 7/8" Diameter Front Spindle Shafts. Dimensions: 7/8" I.D. x 1-1/2" O.D. x 1/16"± thick. $19.00 for two washers, plus shipping & handling.
For Tractors with 1" Diameter Front Spindle Shafts. Dimensions: 1" I.D. x 2-1/2" O.D. x 1/16"± thick. $36.00 for two washers, plus shipping & handling.

ROSS Steering Box Bearing Sets. Fits IH Cub Cadet "Original", and Cub Cadet garden tractor models 70, 71, 72, 73, 86, 100, 102, 104, 105, 106, 107, 108, 109, 122, 123, 124, 125, 126, 127, 128, 129, 147, 149, 169, 482, 580, 582, 680, 682, 782, 782D, 784, 800, 882, 982, 984, 986, 1912, 1914, 1000, 1100, 1200, 1210, 1211, 1250, 1282, 1450, 1512, 1572, 1604, 1606, 1650, 1710, 1711, 1712, 1772, 1806, 1810, 1811, 1812, 1872, 2072, including Cub Lo Boy models 154, 184 and 185; Ford LGT; Jacobsen; John Deere models 60, 70, 100, 110, 112, 120, 140, 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317 and 400; Massey Ferguson / Harris MF models 14, 16, 1200, 1450, 1650, 1655 and 1855; MTD Farm King; Snapper; Wheel Horse; and various other makes and models of garden tractors with the CCC or ROSS aluminum housing steering box. Dimensions of hardened steel cups/races: .870" O.D. x 1.500" O.D. FYI - I've researched all models of the IH- and MTD-built Cub Cadet steering boxes, and they all use the same bearing/race kit and all dimensions are the same.

Hardened Steel Cup/Race Only. Replace just one of these if the original is broken, and when the ball bearings and nylon cages/spacers are in reusable condition. OEM Cub Cadet part # 903-1029. $9.65 each, plus shipping & handling.
Half Steering Box Bearing Set. Includes 8 balls, 1 nylon cage/spacer (to retain and separate the balls) and 1 hardened steel cup/race. OEM Cub Cadet part # 941-3021. $13.00 per half set, plus shipping & handling.
Complete Steering Box Bearing Set. Includes 16 balls, 2 nylon cages/spacers (to retain and separate the balls) and 2 hardened steel cups/races. Replaces John Deere part # AM31924 ($69.00 as of 1/25/21). OEM Cub Cadet part # IH-71930-C91. $25.00 per full set, plus shipping & handling.

Adjustment Plug for ROSS Steering Box. Fits all models of IH- and MTD-built (CCC) Cub Cadet; Cub Lo-Boy models 154, 184 and 185; Ford LGT; Jacobsen; John Deere models 60, 70, 100, 110, 112, 120, 140, 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317 and 400; Massey Ferguson / Harris MF models 14, 16, 1200, 1450, 1650, 1655 and 1855; MTD Farm King; Snapper; Wheel Horse; and various other makes and models of garden tractors with the CCC or ROSS aluminum housing steering box. Dimensions: 1.734" outside of threads diameter. Used and in good condition. Discontinued from Cub Cadet. OEM Cub Cadet part # IH-394288-R1. $30.00 each, plus shipping & handling. (When available.)

Foam Rubber Dust/Grease Seal. Fits International Cub Cadet "Original" Garden Tractor Steering Box. Replace or install this part when old one is deteriorated, torn or missing to prevent dust and dirt from entering inside steering box. May also fit various other early makes and models of garden tractors. Will not fit later models of Cub Cadet garden tractors, Ford LGT, Jacobsen, John Deere, Massey Ferguson, MTD Farm King, Snapper, Wheel Horse or IH Cub Lo-Boy. If the opening in your steering box match this part, then it will fit.

Discontinued from Cub Cadet. Part of OEM Cub Cadet part # IH-376478-R91. $20.00± each, depending on source and availability, plus shipping & handling. (When available.)

Metal Thrust Plate / Retainer. Fits International Cub Cadet "Original" Garden Tractor Steering Box. May also fit various other early makes and models of early garden tractors. Will not fit later models of Cub Cadet garden tractors, Ford LGT, Jacobsen, John Deere, Massey Ferguson, MTD Farm King, Snapper, Wheel Horse or IH Cub Lo-Boy. If the opening in your steering box match this part, then it will fit. Discontinued from Cub Cadet. Part of OEM Cub Cadet part # IH-376478-R91.

Used and in excellent condition. $20.00± each, depending on source and availability, plus shipping & handling. (When available.)

Foam Rubber Dust/Grease Seal. Fits early ROSS aluminum housing steering box in Cub Cadet garden tractor models 70, 71, 72, 73, 86, 100, 102, 104, 105, 106, 107, 108, 109, 122, 123, 124, 125, 126, 127, 128, 129, 147, 149, 169, 482, 580, 582, 680, 682, 782, 782D, 784, 800, 882, 1000, 1100, 1200, 1210, 1211, 1250, 1282, 1450, 1512, 1604, 1606, 1650, 1710, 1711 and 1712. Also fits Ford LGT, Jacobsen, John Deere, Massey Ferguson, MTD Farm King, Snapper, Wheel Horse and various other early makes and models of garden tractors. Will not fit Cub Cadet "Original" or IH Cub Lo-Boy. This part replaces the seal in the metal thrust plate/retainer listed below (IH-394936-R91). Will not fit Cub Cadet "Original" or IH Cub Lo-Boy. This part have no Cub Cadet part number and is not available separately from Cub Cadet.

OEM John Deere part # M41917. $18.00 each, plus shipping & handling.

Metal Thrust Plate/Retainer. Fits early ROSS aluminum housing steering box in Cub Cadet garden tractor models 70, 71, 72, 73, 86, 100, 102, 104, 105, 106, 107, 108, 109, 122, 123, 124, 125, 126, 127, 128, 129, 147, 149, 169, 482, 580, 582, 680, 682, 782, 782D, 784, 800, 882, 1000, 1100, 1200, 1210, 1211, 1250, 1282, 1450, 1512, 1604, 1606, 1650, 1710, 1711 and 1712. Also fits Ford LGT; Jacobsen; John Deere models 110, 112, 120, 140, 300 and 316; Massey Ferguson; MTD Farm King; Snapper; Wheel Horse and various other later makes and models of garden tractors with the ROSS steering box. Will not fit Cub Cadet "Original" or IH Cub Lo-Boy.

Used and in excellent condition. Discontinued from Cub Cadet. OEM Cub Cadet part # IH-394936-R91. $20.00± each, depending on source and availability, plus shipping & handling. (When available.)
New. NOTE - Inside dimensions of the OEM retainer in IH Cub Cadets (NLA) measures 1.144" width x 1-3/4" length. Inside dimensions of the John Deere retainer measures 1.444" width x 1.825" length. If the opening in your steering box match these dimensions, then this part will fit. But if the opening is smaller than 1.444" x 1.825", it will need to be ground out slightly larger for this part to fit. (Sometimes one must improvise when certain parts are obsolete.) OEM John Deere part # M45569. $10.00 each, plus shipping & handling.

Foam Rubber Dust/Grease Seal. Fits newer CCC (ROSS) aluminum housing steering box in Cub Cadet garden tractor models 1050, 1204, 1210, 1211, 1340, 1440, 1535, 1541, 1641, 1806, 1810, 1811, 1812, 1860, 1861, 1863 and 1864. May also fit other makes and models of garden tractors with the ROSS steering box. Replace or install this part when old one is deteriorated, torn or missing to prevent dust and dirt from entering inside steering box. This part replaces the seal in the metal thrust plate/retainer listed below (703-1031).

OEM Cub Cadet part # 923-3039. $8.00 each, plus shipping & handling.

Metal Thrust Plate Retainer. Fits newer CCC (ROSS) aluminum housing steering box in Cub Cadet garden tractor models 1050, 1204, 1210, 1211, 1340, 1440, 1535, 1541, 1641, 1806, 1810, 1811, 1812, 1860, 1861, 1863 and 1864. May fit various other makes and models of garden tractors with the ROSS steering box. Will not fit Cub Cadet "Original" or IH Cub Lo-Boy.

Discontinued OEM Cub Cadet part # 703-1031. $10.00± each, depending on source and availability, plus shipping & handling. (When available.)

1/2" Diameter Cam Followers (Adjustable Steering Pins). Fits International Cub Cadet "Original" and IH Cub Cadet models 70, 71, 72, 73, 86, 100, 102, 104, 105, 106, 107, 108, 109, 122, 123, 124, 125, 126, 127, 128, 129, 147, 149, 169, 482, 580, 582, 582 Special, 680, 682, 782, 782D, 784, 800, 882, 1000, 1100, 1200, 1250, 1282, 1450, 1512, 1604, 1606, 1650, 1710, 1711, 1712, 1961, 1962 and 1963. Made in the USA of extremely hardened high grade heat-treated steel for long wear. Not machined grade 8 bolt material. Does not include jam nut.

High quality aftermarket/universal fit cam follower. Replaces discontinued Cub Cadet part #'s IH-62806-C2 and IH-379992-R1. $22.00 each, plus shipping & handling.

9/16" Diameter Cam Follower (Adjustable Steering Pin). Fits IH- and MTD-built Cub Cadet models 982, 984, 986, 1050, 1204, 1210, 1211, 1340, 1440, 1535, 1541, 1641, 1806, 1810, 1811, 1812, 1860, 1861, 1863, 1912 and 1914. Does not include jam nut.

High quality aftermarket/universal fit cam follower. Made in the USA of extremely hardened high grade heat-treated steel for long wear. Not machined grade 8 bolt material. $24.00 each, plus shipping & handling.
Cam Follower. OEM Cub Cadet part # 911-3149A. $37.90 each, plus shipping & handling. Return to Previous Section

Flanged Bronze Bushing w/integrated flange.

Replace worn OEM plastic bushing so steering shaft will be in perfect alignment with the bearings in the steering box for smoother steering. Fits upper steering column tube/shaft with a bushing retainer (metal adapter/reducer) originally installed in International Cub Cadet "Original" and Cub Cadet models 70, 71, 100, 102, 122 and 123, and various other early makes and models of garden tractors. OEM bearing retainer and bushing can be replaced with flanged bushings and bearing listed below Ê. Dimensions: 3/4" O.D. x 1.003" O.D. x 3/4" height x 1-1/4" O.D. flange. No longer available from Cub Cadet. Replaces Cub Cadet part # IH-866105-R1. $2.00 each, plus shipping & handling.

Flanged Graphite Bushing w/integrated flange. Replace worn OEM plastic bushing so steering shaft will be in perfect alignment with the bearings in the steering box for smoother steering. Fits upper steering column tube/shaft in certain Cub Cadet models 72, 73, 86, 104, 105, 106, 107, 108, 109, 124, 125, 126, 127, 128, 129, 147, 149, 169, 582, 680, 782, 800, 982, 984, 986, 1000, 1100, 1200, 1250, 1450 and 1650, and various other later makes and models of garden tractors without bushing retainer at top of steering column tube. Dimensions: 3/4" O.D. x 1-3/8" O.D. x 9/16" width x 1-1/2" O.D. flange. NOTE: End of steering column must be crimped inward with large pliers so bushing will fit snug inside tube. Replaces Cub Cadet 941-3023. $3.50 each, plus shipping & handling.

Flanged Sealed Ball Bearing w/integrated flange. Replace worn OEM plastic bushing so steering shaft will be in perfect alignment with the bearings in the steering box for friction-free steering. Fits upper steering column tube/shaft in certain Cub Cadet models 72, 73, 86, 104, 105, 106, 107, 108, 109, 124, 125, 126, 127, 128, 129, 147, 149, 169, 582, 680, 782, 800, 982, 984, 986, 1000, 1100, 1200, 1250, 1450 and 1650, and various other later makes and models of garden tractors without bushing retainer at top of steering column tube. Makes for smoother, effortless and easier steering. Dimensions: 3/4" O.D. x 1-3/8" O.D. x 9/16" width x 1-1/2" O.D. flange. NOTE: End of steering column must be crimped inward with large pliers so bearing will fit snug inside tube. These are NOT the low quality flanged bearings that's available at most hardware stores. These have hardened, heated-treated steel races and balls, sealed on both sides and pre-packed with grease for longer wear.

High quality aftermarket. Replaces Cub Cadet 941-3023. $8.00 each, plus shipping & handling.
Flanged Plastic Bushing. Dimensions: 3/4" O.D. x 1-13/32" O.D. x 9/16" width x 1-1/2" O.D. flange. OEM Cub Cadet 941-3023. $5.30 each, plus shipping & handling.

Stainless Steel Flat Washer. Necessary to evenly distribute pressure from either steering wheel retaining nuts listed below. 5/8" I.D. $1.00 each, plus shipping & handling.

Zinc-Plated Steel Nylon Insert Steering Wheel Retaining Jam Locknut. Will not loosen under normal circumstances. Fits all Cub Cadet garden tractors and other makes and models of garden tractors with 5/8-18 UNF (fine thread) threads on steering shaft. IMPORTANT - For easier installation of nut (and easier removal of steering wheel), use a 5/8-18 UNF threading die (and handle/wrench) to clean/straighten damaged threads on shaft, apply anti-seize compound/lubricant on threads (including splines inside steering wheel and on shaft), then torque nut to 65 ft. lb. High quality aftermarket. Replaces discontinued Cub Cadet part # 912-3021. $3.00 each, plus shipping & handling.

Zinc-Plated Steel Acorn/Crown/Dome Steering Wheel Retaining Nut. When appearance matters. Fits all Cub Cadet garden tractors and other makes and models of garden tractors with 5/8-18 UNF (fine thread) threads on steering shaft. IMPORTANT - For easier installation of nut (and easier removal of steering wheel), use a 5/8-18 UNF threading die (and handle/wrench) to clean/straighten damaged threads on shaft, apply anti-seize compound/lubricant on threads (including splines inside steering wheel and on shaft), then torque nut to 65 ft. lb. High quality aftermarket. Replaces discontinued Cub Cadet part # IH-131506. $10.00 each, plus shipping & handling.

Bronze Front Axle Bushings for Garden Tractors with 3/4" or 1" Diameter Spindle Shafts. When replacing existing OEM bushings, accurately measure the i.d. x o.d. x length for replacements of same size. Or use these to replace existing worn bushings or repair worn (oblong) axle spindle holes when no bushings are originally installed (when the spindles make metal to metal contact with the cast iron axle). If no bushings were originally installed in the axle, then spindle holes must be professionally precision-aligned bored (machined) to accept bushings. Other sizes of bushings are available. Please let A-1 Miller's know what you need and I can probably get it for you at a reasonable price. NOTE: If no Zerk grease fittings are installed in the axle to lubricate the spindle shafts and for easier steering and longevity of the bushings, it'll be a good idea to install these, too.

Axle Bushings for 3/4" Spindles. Dimensions: 3/4" i.d. x 1" o.d. x 1" Length. Can be used to replace OEM sleeve bushings in certain Cub Cadet garden tractor models 86, 108, 109, 128, 129, 149, 169, 482, 580, 582, 680, 682, 782, 782D, 784, 800, 882, 1000, 1050, 1100, 1200, 1204, 1210, 1211, 1250, 1450, 1512, 1604, 1606, 1650, 1710, 1711, 1712, 1806, 1810, 1811 and 1812. Replaces Cub Cadet part # 950-3002. $18.00/set of 4 bushings, plus shipping & handling.
Axle Bushings for 1" Spindles. Dimensions: 1" i.d. x 1.125" o.d. x 1" Length. Can be used to replace OEM axle bushings in certain Cub Cadet garden tractor models 982, 984, 986, 1572, 1772, 1782, 1872, 1882, 1912, 1914, 2072, 2082, 2084, 2086, 2182 and 2284. Discontinued from Cub Cadet. Replaces Cub Cadet part #'s 741-3005, 941-3005. $18.00/set of 4 bushings, plus shipping & handling.

Zerk Grease Fittings. NOTE: Use a 1/4-28 UNF hand tap (preferably Taper type) to cut new threads for installation of a grease fitting. Click or tap here to learn how to professionally drill for and cut new threads. FYI - If a grease fitting needs to be used in a thin-wall steel tubing (that's too thin to cut deep enough threads into) to lubricate a moving inside shaft, weld a jam nut with 1/4-28 UNF threads to the tubing, then drill a 3/16" hole through the nut and tubing, and install a grease fitting with short threads in the nut. [Return to Previous Section, Paragraph or Website]

Short Straight fitting. Use for steering ends/joints, spindle shafts, universal joints, etc. Dimensions: 1/4-28 UNF x .181" length threads x 35/64" overall height x 5/16" hex.
- High quality aftermarket. Replaces Cub Cadet part # 937-3000. .50¢ each, plus shipping & handling.
- OEM Cub Cadet part # 937-3000. $3.50 each, plus shipping & handling.
Long Straight fitting. Install in front wheel hubs to lubricate bushings or bearings, etc. Dimensions: 1/4-28 UNF threads x 11/16" overall height x 5/16" hex. .50¢ each, plus shipping & handling.
45º Angled Fitting. Use in hard to get places with obstacles. Dimensions: 1/4-28 UNF x .222" length threads x 7/8" overall height x 5/16" hex.
- High quality aftermarket. Replaces Cub Cadet part # 737-3001. $1.00 each, plus shipping & handling.
- OEM Cub Cadet part # 737-3001. (Replaces 65º fitting, discontinued Cub Cadet part # IH-273360.) $9.30 each, plus shipping & handling.
90º Angled Fitting. Use in hard to get places with obstacles. Dimensions: 1/4-28 UNF x .207" length threads x 3/4" overall height x 5/16" hex. .75¢ each, plus shipping & handling.

Heavy Duty Tie Rod End Steering Joints with incorporated rubber dust seal. Can be used on riding mowers, lawn and garden tractors, ordinary garden tractors, go-karts, King Midget micro cars, recreational vehicles, garden pulling tractors, small wheel mini-rod pulling tractors, compact tractors, automotive throttle linkages, automotive transmission shifter linkages, etc. Allows for up to 20º angle of misalignment without binding. Before initial installation, apply clean motor oil under dust seal to help extend life of ball joint.

1/4-28 UNF (fine thread) right hand thread hole x 1/4-28 UNF (fine thread) right hand thread stud. $6.00 each, plus shipping & handling.
5/16-24 UNF (fine thread) right hand thread hole x 5/16-24 UNF (fine thread) right hand thread stud. $6.00 each, plus shipping & handling.
3/8-24 UNF (fine thread) right hand thread hole x 3/8-24 UNF (fine thread) right hand thread stud. Most common direct replacement found on many makes and models of lawn and garden tractors. High quality aftermarket. Replaces Cub Cadet part # 923-3018. $5.00 each, plus shipping & handling.
3/8-24 UNF (fine thread) right hand thread hole x 3/8-24 UNF (fine thread) right hand thread stud. OEM Cub Cadet part # 923-3018. $13.45 each, plus shipping & handling.
3/8-24 UNF (fine thread) left hand thread hole x 3/8-24 UNF (fine thread) right hand thread stud. $15.00 each, plus shipping & handling.
1/2-20 UNF (fine thread) right hand thread hole x 1/2-20 UNF (fine thread) right hand thread stud. $15.00 each, plus shipping & handling.
1/2-20 UNF (fine thread) left hand thread hole x 1/2-20 UNF (fine thread) right hand thread stud. $15.00 each, plus shipping & handling.

Aircraft Quality Heim Steering Joints. Extremely Strong! Upgrade from OEM-type tie rod end joints for durability and use with heavier front end applications. Can be used on riding mowers, lawn and garden tractors, ordinary garden tractors, go-karts, King Midget micro cars, recreational vehicles, garden pulling tractors, mini-rod pulling tractors, compact tractors, automotive throttle linkages, automotive transmission shifter linkages, etc. Allows for up to 20º angle of misalignment without binding. NOTE: These do not come with the protective rubber dust/dirt seals/shields. (Listed below.)

1/4" mounting hole x 1/4-28 UNF (fine thread) right hand thread hole. $12.00 each, plus shipping & handling.
5/16" mounting hole x 5/16-24 UNF (fine thread) right hand thread hole. $12.00 each, plus shipping & handling.
5/16" mounting hole x 5/16-24 UNF (fine thread) right hand thread stud. $12.00 each, plus shipping & handling.
5/16" mounting hole x 5/16-24 UNF (fine thread) left hand thread stud. $12.00 each, plus shipping & handling.
3/8" mounting hole x 3/8-24 UNF (fine thread) right hand thread hole. Direct replacement for most OEM-type tie rod end joints used on various lawn and garden equipment. $12.00 each, plus shipping & handling.
3/8" mounting hole x 3/8-24 UNF (fine thread) left hand thread hole. $12.00 each, plus shipping & handling.
3/8" mounting hole x 3/8-24 UNF (fine thread) right hand thread stud. $12.00 each, plus shipping & handling.
3/8" mounting hole x 3/8-24 UNF (fine thread) left hand thread stud. $12.00 each, plus shipping & handling.
1/2" mounting hole x 1/2-20 UNF (fine thread) right hand thread hole. $15.00 each, plus shipping & handling.
1/2" mounting hole x 1/2-20 UNF (fine thread) right hand thread stud. $15.00 each, plus shipping & handling.
1/2" mounting hole x 1/2-20 UNF (fine thread) right hand thread stud. $15.00 each, plus shipping & handling.
5/8" mounting hole x 5/8-18 UNF (fine thread) right hand thread stud. $25.00 each, plus shipping & handling.
3/4" mounting hole x 3/4-16 UNF (fine thread) right hand thread stud. $30.00 each, plus shipping & handling.

Protective Rubber Seals/Shields for Heim joints listed above È. These are a cup-shaped neoprene rubber seal bonded to an aircraft quality flat washer. When installed, rubber edge fits snug against Heim joint body to prevent dust, dirt, debris and moisture from entering the spherical ball, which will cause it to wear. Apply clean motor oil on ball before installing seals for smoother operation and to extend life of Heim joint. Seals/shields for 1/4" Heim joint not available.

Fits 5/16" Size Heim Joints. $12.00 per pair (for one Heim joint), plus shipping & handling.
Fits 3/8" Size Heim Joints. $12.00 per pair (for one Heim joint), plus shipping & handling.
Fits 1/2" Size Heim Joints. $12.00 per pair (for one Heim joint), plus shipping & handling.
Fits 5/8" Size Heim Joints. $14.00 per pair (for one Heim joint), plus shipping & handling.
Fits 3/4" Size Heim Joints. $15.00 per pair (for one Heim joint), plus shipping & handling.

Steel Jam Nuts. These are approximately half the thickness/width of ordinary nuts. Use these to secure tie rod link to tie rod end joint or Heim joint to prevent loosening of steering link and maintain proper toe-end alignment.

1/4-28 UNF (fine thread) right hand threads. $1.00 per two nuts, plus shipping & handling.
5/16-24 UNF (fine thread) right hand threads. $1.00 per two nuts, plus shipping & handling.
3/8-24 UNF (fine thread) right hand threads. $1.00 per two nuts, plus shipping & handling.
1/2-20 UNF (fine thread) right hand threads. $1.00 per two nuts, plus shipping & handling.
5/8-18 UNF (fine thread) right hand threads. $2.00 per two nuts, plus shipping & handling.
3/4-16 UNF (fine thread) right hand threads. $2.50 per two nuts, plus shipping & handling.

A-1 Miller's Custom-Made Heavy Duty Steering Linkage Assemblies (Tie Rod or Drag Link) for your Garden Tractor, Compact Tractor, Mini-Rod, etc. NOTE: When ordering, please specify model of Cub Cadet garden tractor, or exact length of linkage from center of mounting studs (tie rods) or center of mounting bolts (Heim joints), and size of tie rods or ball joints.

Tie Rod Linkage Assembly w/3/8" Right Hand Thread Tie Rod Ends. $30.00 each, plus shipping & handling.
Tie Rod Linkage Assembly w/1/2" Right Hand Thread Tie Rod Ends. $50.00 each, plus shipping & handling.
Tie Rod Linkage Assembly w/3/8" Right Hand Thread Ball Joint Ends (Heim Joints) without Rubber Dust/Dirt Seals. $30.00 each, plus shipping & handling.
Tie Rod Linkage Assembly w/3/8" Right Hand Thread Ball Joint Ends (Heim Joints) with Rubber Dust/Dirt Seals. $54.00 each, plus shipping & handling.
Tie Rod Linkage Assembly w/3/4" Right Hand Thread Ball Joint Ends (Heim Joints) with Rubber Dust/Dirt Seals and Heavy Wall Steel Tubing. Replace weak and/or broken OEM tie rod linkage assembly on 4X4 compact tractors with a heavy duty steering linkage assembly. $200.00± each, plus shipping & handling.

A-1 Miller's Modification Service - Make the front of your Cub Cadet competition garden pulling tractor as low as it will go for better weight distribution and more traction when pulling down the track! This service includes installation of weld-in drop spindle shafts in YOUR steering knuckles to lower the front end approximately 2-3/8" for wide or spread frame Cub Cadet models 86, 108, 109, 128, 129, 149, 169, 582, 582 Special, 680, 682, 782, 800, 882, 1000, 1050, 1100, 1200, 1204, 1210, 1211, 1250, 1282, 1450, 1512, 1535 or 1650. An ingenious and innovative concept by Brian Miller. because nobody else advertise this type of service.

Install 3/4" spindle shafts with 3/8-16 UNC x 1" depth threaded hole in end of shaft (for 3/8" retaining bolt and flat washer; not included, see below) in your steering knuckles. $85.00 for parts and labor, plus return shipping & handling.
Install two 1" spindle shafts with 3/8-16 UNC x 1" depth threaded hole in end of shaft (for 3/8" retaining bolt and flat washer; not included, see below) in your steering knuckles. $95.00 for parts and labor, plus return shipping & handling.

Do-It-Yourself Weld-In Drop Spindle Shafts. Make the front of your Cub Cadet competition pulling tractor as low as it will go for better weight distribution and better traction when pulling down the track! Lowers front end approximately 2-3/8" on wide and spread frame Cub Cadet models 86, 108, 109, 128, 129, 149, 169, 582, 582 Special, 680, 682, 782, 800, 882, 1000, 1050, 1100, 1200, 1204, 1210, 1211, 1250, 1282, 1450, 1512, 1535 or 1650. Can also be used to construct custom-made front axles, such as for a mini-rod pulling tractor. Standard length of installed [Cub Cadet] spindle shafts is 3-1/8" for wheels with a 3" width center hub, but these are available in any other length to accommodate the width of the center hub in your front wheels. To install, cut off original spindle shafts flush with steering knuckles, and depending on diameter of shafts, drill a 3/4" or 1" hole in knuckles approximately 2-3/8" higher/upward from original shaft location. For front tires to set perpendicular (exact 90° angle) with the ground, replacement shafts will need to be positioned perpendicular with each knuckle, then securely weld shaft to backside of knuckle for non-interference with spacing of wheel/rim. An ingenious and innovative concept by Brian Miller. Please accept no advertised copycat products of this kind. (But I do appreciate them acknowledging my ingenuity and intelligence.)

3/4" diameter spindle shaft with 3/8-16 UNC x 1" depth threaded hole in end of shaft for 3/8" bolt and flat washer. $34.00 per set of two (1 pair), plus shipping & handling.
1" diameter spindle shaft 3/8-16 UNC x 1" depth threaded hole in end of shaft for 3/8" bolt and flat washer. $45.00 per set of two (1 pair), plus shipping & handling.

Retaining Bolts and Flat Washers for Front Wheels. Includes two 3/8-16 UNC x 3/4" length grade 8 bolts and two approximately 1/8" thickness x 1-1/2" O.D. flat washers. IMPORTANT: To prevent bolts from loosening, torque each bolt to 360 in. lb. or 30 ft. lb. $5.00 per set of two each, plus shipping & handling.

How to Fix a Loose-Fitting Drag Link Arm -

To fix a loose-fitting drag link arm on the narrow frame Cub Cadet, model 70, 71, 72, 73, 100, 102, 104, 105, 106, 107, 122, 123, 124, 125, 126 or 147, the hub must be "clamped" to the spindle. To do this...

Remove the drag link arm from the spindle.
Use a hacksaw to cut a couple of slots in the hub 90° in relation to the roll-pin holes. Cut the slots about 90% down into the hub.
Place the arm on the spindle and drill through all three (roll-pin) holes with a 3/8" drill bit.
Acquire a hardened (grade 8) 3/8" bolt, split lock washer and hardened (grade 8) nut. Make sure the bolt has an unthreaded (shouldered) portion the same width as the diameter of the hub.
Install the bolt in the hub and spindle, then torque the nut to 35 ft. lbs. so the hub is squeezed onto the spindle. NOTE: clamping the hub may weaken the factory spot weld. Therefore, the hub may need to be re-welded to the arm.

How to Lengthen the Drag Link (link that goes between pitman arm to steering arm on spindle) When the Front Axle is Repositioned Forward:

Measure the distance the front axle was moved forward. Make a note of the measurement.
Center the steering wheel with the pitman arm facing straight down.
With the tires facing forward, measure the center to center distance between the holes in the pitman arm and drag link arm. Make a note of this measurement.
Cut the OEM drag link in half as shown in the drawing to the right.
Acquire some 1/2" i.d. x 5/8" o.d. steel tubing of the distance the front axle was moved forward, plus 6" lengthen than the distance. This is important!
Slide 3" of each cut end of the drag link rod inside the tubing. For strength and minimize flexibility, make sure there's at least 3" of the rod inside the tubing on each end. If the rod won't fit, it may need to be ground down and/or pressed in.
Adjust the overall length of the lengthened drag link by sliding the rods back and forth in the tubing until the drag link has the added difference of how far the axle have been moved forward.
Weld the tubing to the rods. But first, double check the front tires for facing forward and centering of the drag link arm (steering wheel)!
Grind the weld smooth, paint and that's it!

IH and MTD Cub Cadet Garden Tractor Models That Share the Same Front Axle -

Front Axle for IH Cub Cadet Narrow Frame Models 70, 71, 72, 73, 100, 102, 104, 105, 106, 107, 122, 123, 124, 125, 126, 127 and 147. (Part # 959-3011)

Front Axle for IH Cub Cadet Wide and Spread Frame Models 86, 108, 109, 128, 129, 149, 169, 582, 582 Special, 680, 682, 782, 800, 882, 1000, 1050, 1100, 1200, 1204, 1210, 1211, 1250, 1282, 1450, 1512, 1535 and 1650. (Part # 759-3270)

Front Axle for IH and MTD Cub Cadet Spread Frame Models 982, 984, 986, 1572, 1772, 1782, 1872, 1882, 1912, 1914, 2072, 2082, 2084, 2086, 2165, 2182 and 2284. (Part # 759-3271)

Front Axle for MTD Cub Cadet Spread Frame Models 1340, 1535, 1541, 1860 and 1862. (Part # 759-3549)

Front Axle for MTD Cub Cadet Spread Frame Models 1440, 1861, 1863 and 1864. (Part # 719-3100)

How to Reinforce the Spindle Shafts (Steering Knuckles) on Cub Cadet Models 70, 71, 72, 73, 100, 102, 104, 105, 106, 107, 122, 123, 124, 125, 126, 127, 147, 982, 984, 986, 1340, 1440, 1535, 1541, 1572, 1772, 1782, 1861, 1863, 1864, 1872, 1882, 1912, 1914, 2072, 2082, 2084, 2086, 2165, 2182, 2284, 1860 and 1862.

If the front tires on the narrow frame Cub Cadet models listed above look "dilapidated" (the tops of the tires tilt inward), this means the spindle shafts are bent from doing too many ground-pounding wheelies and weren't reinforced. If the spindle shafts are bent, to prevent them from getting bent again...

Heat the spindle shafts with an oxy-acetylene torch in a hydraulic press to reposition them so the tires will set perpendicular with the ground. Or re-angle the spindle shafts so the tops of the tires will tilt slightly outward for that "tough" look.
Install the spindles on the axle, then the tires, and stand away from the front of the tractor to visually check that the tires are positioned perpendicular with the ground. Adjust if necessary.
Remove spindles if necessary (this is much easier to do on a platform work table) and weld a 1/4" x 3/4" x 1-3/4" piece of mild steel (brace) in the bend section.

To fix worn holes for the spindles in the axle itself on a narrow frame Cub Cadet, the holes will need to be bored or reamed out and a couple of thin-wall bronze bushings pressed-in for the top and bottom ends of the hole.

How to Reposition the Front End 2-3/8" Lower on Cub Cadet Models 86, 108, 109, 128, 129, 149, 169, 582, 582 Special, 680, 682, 782, 800, 882, 1000, 1050, 1100, 1200, 1204, 1210, 1211, 1250, 1282, 1450, 1512, 1535 and 1650 -

Acquire a couple of grade 5 bolts, 3/4" diameter x 5" length.
Measure from under the bolt head out 3-1/4", and cut off the bolt, creating a couple of stub shafts that's 3-1/4" length when measured from under the head. (Best to use a small horizontal bandsaw. Cut the threaded end off, but leave the head of the bolt intact.)
Chuck each stub shaft in the jaws of a metal lathe and machine the bolt head so it'll be round. Shorten the height of the head to about 3/8" so it will not make contact with the axle when installed.
Turn the stub shaft around (end for end) in the chuck and bore a hole in the end of each shaft for a 3/8-16 UNC (coarse thread) wheel retaining bolt and flat washer.
Remove the steering knuckles from the axle. (This is much easier to do on a platform work table.)
Cut off the original spindle shafts flush with the steering knuckle.
Drill a 3/4" hole (for the new spindle/stub shafts) 2-3/8" from the center of the original spindle shaft.
Install the stub shafts in the 3/4" holes and securely weld the rounded/shortened bolt heads to the backside of each steering knuckle. For the tires to set perpendicular with the ground, before welding, make sure the shafts are positioned perpendicular (90°) to the flat on the knuckles!
Install the steering knuckles on the axle, then the tires, and stand back from the front of the tractor to visually check that the tires are positioned perpendicular with the ground. Adjust if necessary.

A Pivoting Axle Vs. a Solid-Mounted Axle for Competition Pulling?

I've seen modified garden tractors with a swivel front axle and I've seen some modifieds with a solid-mounted axle. And I noticed that one doesn't pull any better than the other. So it seems it's just the pullers' preference if he or she wants a swivel or solid front axle. And about the only way to fix the looseness of the center pivoting pin hole is to have the axle bored for installation of thin wall bronze bushings, like the ones used for king pins in truck front axles.

How to Repair Worn Pivot Pin Holes for the Front Axle -

Sometimes the pivoting pin in the center of the front axle will rust in place and then the pin will pivot in the holes in the support braces. When this happens, overtime the holes will become oblong and the axle will become unstable, causing sloppy steering. Well, to repair a tractor with worn pivot holes like the ones in the picture below Ê...

Drill or ream the holes in the braces to exactly 1.000".
Fabricate a steel reducer sleeve bushing (spacer) that measures 3/4" i.d. x 1.003" o.d. for a press-fit.
Press each bushing in the holes of the braces. Make sure the bushings are aligned properly so the pin will rotate freely to prevent binding.
Tack weld the edge of each bushing on the outside of the braces.
The center line of the OEM hole in the bracket is 1-1/8" from the frame. But this will be altered due to the offset of the bushing.

If the center hole in an axle is worn, this can be repaired by first boring the hole for a press-fit steel sleeve and then bore the sleeve so a new center pin (or grade 8 or stainless steel bolt) will fit snug in it. Or, you can also bore the hole in the axle and support bracket with a 20 millimeter diameter (equal to .7874") drill bit or reamer and install a hardened 20 mm bolt. It'll be a lot less work to do just do this.

Click Here for Detailed Illustrated Plans on How to Construct a Professional Pull-Back and Self-Propelled Garden Tractor Pulling Sled (Available Soon )

To place an order and/or for FREE professional and honest technical assistance and support, please contact: A-1 Miller's Performance Enterprises | 1501 W. Old Plank Rd. | Columbia, MO (Missouri) 65203-9136 USA | Phone: 1-573-256-0313 (shop) | 1-573-881-7229 (cell; text or when leaving a voice message, please speak slowly and clearly). Payment Options. Please call Monday-Friday, except holidays, 9am to 5pm, Central time zone. If no answer, please try again later. (When speaking with Brian, please be patient because I stutter.) E-mail: pullingtractor@aol.com. A-1 Miller's shop is open to the public from 9am to 5pm, with an appointment on weekends, except holidays. Please call, text or email me before coming so I'll be at my shop waiting for your arrival. When you visit our shop, you will be dealing directly with the owner for the best customer service. Directions to our shop | 1501 West Old Plank Road, Columbia, MO - Google Maps or Map of 1501 West Old Plank Road, Columbia, MO by MapQuest. If you're the kind of person who don't trust delivery/shipping companies (mis)handling your high-dollar and fragile merchandise, you can make the long drive to A-1 Miller's shop to personally purchase parts, or drop off and/or pick up your carburetor, clutch assembly, engine parts, entire engine, transmission, transaxle, entire garden tractor, etc. for repairing and/or rebuilding. "The road to a friend's house (or shop) is never long." (We're planning to relocate our business to other property with a bigger and better shop so we can provide many more high quality parts and professional services.) [Return To Previous Paragraph, Section or Website]

To place an order, please call the number below Ê or send an email with your name, complete and correct postal address and phone number and so I can figure the total with shipping cost and USPS Tracking. For payment options for parts ordered or services performed, or to make a donation to my websites, I accept cash (in person), USPS Postal Money Orders, cashier's checks, business checks, MasterCard, VISA, Discover, American Express (please add 2.5% to the total for the credit/debit card processor's surcharge), Western Union Money Transfer or MoneyGram Money Transfers. (If a part for a specific purpose is special ordered, your debit/credit card may be charged for the full amount or as a deposit right after your order is placed; please do not send your debit/credit card information in email!) Or you can pay A-1 Miller's through PayPal. (My PayPal account name is my email address. And be sure to mention in PayPal a description of what the payment is for.) If sending a money order, please include a note in the envelope with your name, complete and correct postal address, phone number and a description of what the payment is for. My mailing address and phone number are below Ê . I'll make a note of your order, and I may have to order some of the parts, which should take a few days to come in, but I will send the parts to you as soon as I have everything in stock after I receive your payment.

IMPORTANT - When sending your part(s) to A-1 Miller's for rebuilding or repair, package everything securely so the item(s) won't get damaged in shipping and please include a note in the box with your name, mailing address, phone number (in case I have any questions) and a description of what you want done. When shipping heavy parts, it's best to put a slightly smaller box inside a larger box, to double the strength and integrity of the package. Because the clumsy "gorillas" or incompetent and uncaring workers that work for certain delivery services mishandle the heavy packages and don't care. And when the work is completed, I'll either call or email you an invoice with the total including shipping & handling.

Payment Options and We Ship to Canada and Worldwide
Item(s) in a package or cushioned envelope weighing less than 1 lb. is sent by US Postal Service Airmail Letter Post for a 4-7 days delivery. Packaged item(s) weighing over 1 lb. and up to 66 lb. is sent by US Postal Service Airmail Parcel Post for a 4-10 days delivery. I cannot use the US Postal Services' Flat Rate Priority Mail envelopes and boxes to ship outside U.S. territories. Item(s) weighing over 67 lbs. or more is sent by FedEx Ground or equivalent services. We try to keep our shipping cost to customers within reason. Therefore, we don't ship our products in a fancy-looking package with our company name and/or logo on it because most customers will just toss it in the trash after they remove the contents. And being there is no USPS tracking number outside the US, all I can do is make sure I write your address correctly on the customs form and on your package.

My websites are not set up to process orders and accept payments. Therefore, for payment options, I accept cash (in person), USPS Postal Money Orders, cashier's checks, business checks, MasterCard, VISA, Discover, American Express (please add 2.5% to the total amount for the credit/debit card processor's surcharge), Western Union Money Transfer or MoneyGram Money Transfers. If paying with a credit/debit card, please call me at either number below. To make a payment to me through PayPal, please click this link: https://www.paypal.me/PullingTractor. Please use the "Friends and Family" option, or add 3% to the total amount to cover PayPal's processing surcharge. Or to make a payment to me (pullingtractor@aol.com) in the US through the Venmo app, please click this link: venmo.com. Or use Cash App to make a payment to me (pullingtractor@aol.com). And be sure to mention in PayPal, Venmo or Cash App a description of what the payment is for with your full name, postal address, phone number and email address. If sending a money order or cashier's check, please include a note in the envelope with your name, complete mailing address, phone number, email address and a description of what the payment is for. I'll make a note of your order when I have all your information, and I may have to order some of the parts, which should take a few days to come in, but I will send everything on your list to you as soon as I have the parts in stock after I receive your payment.
